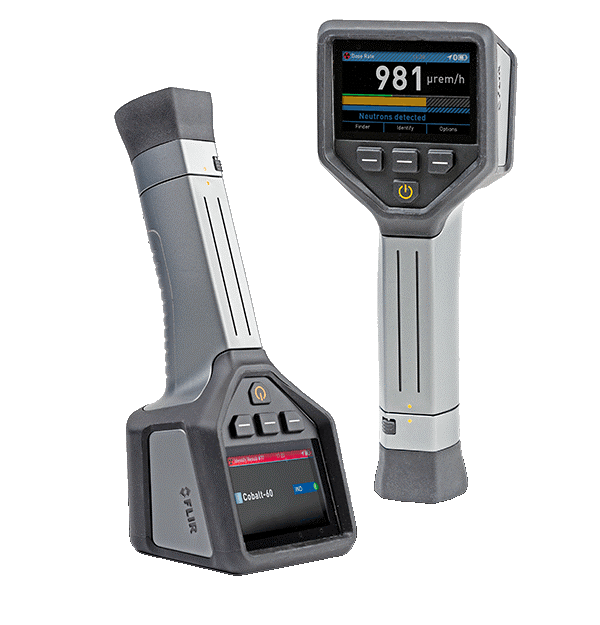

The identiFINDER® R440 is a lightweight, source-less radionuclide identification device (RID) that delivers sensitive detection and fast results for routine survey or secondary screening response missions. The R440 is available with NaIL, NaI, LaBr and CLLBC detector options to respond to radiological threats from farther away, behind heavier shielding, and with better resolution than similarly-sized RIDs. Its light weight makes single-handed operation easy during extended operations, while the IP67-rated enclosure is built to survive. The bold, easy-to-read interface with 360° EasyFinder™ mode expedites decision-making to keep personnel and the community safe.
| Technology | Radionuclide Identification Device (RID) |
| Gamma with Neutron Indication – NaI(Tl) | (51 x 51 mm) |
| Gamma with Neutron Measurement – NaIL (optional) | (51 x 51 mm) |
| Gamma with Neutron Mea- surement – CLLBC | (36 x 38 mm) |
| Gamma – LaBr (optional) | (36 x 38 mm) |
| Neutron – ZnS(Li) (optional) | 2ea. Moderated Panels (27 x 58 x 5 mm) |
| Energy Range (Gamma) | 10 keV to 10 MeV (All detectors) |
| Gamma Sensitivity (Cs-137) | 1850 cps/μSv/h – (NaI/NaIL) 985 cps/μSv/h – (CLLBC) 780 cps/μSv/h – (LaBr) |
| Neutron Sensitivity | ≥2.8 cps/nv – (NaIL – not applicable to NaI) 17 cps/nv – (CLLBC) 7.8 cps/nv – (LaBr) |
| Gamma Spectrum Length | 1024 channels |
| Dose Rate Range (Cs-137, All) | 10nSv/h - 10mSv/h (1µrem/h - 1rem/h) / ±10 % |
| Dose Rate Range ID Mode (Cs-137, All) | 10nSv/h - 250µSv/h (1µrem/h - 25mrem/h) |
| High Dose Rate Range (Cs-137, All) | 10mSv/h - 500mSv/h (1rem/h - 50rem/h) |
| Stabilization | Sourceless “Quantum gain” stabilization |
| Linearization | Real-time linearization of gamma energy |
| Threats | Detects gamma and/or neutron radiation emitted from natural occurrences in the environment, special nuclear material, industrial, or medical material |
| Display & Alerts | Transflective color LCD / 3” (2.72” x 1.61”) Color TFT Display, Resolution: 800 x 480 pixels |
| Communications | USB 2.0, USB OTG; Bluetooth® Class BLE 4.0 and 2.1 with EDR ≤30m range, WiFi 802.11 g/n (can be disabled at manufacture) |
| Data Storage | 32GB internal memory |
| Input Voltage | 100-240V AC (wall adapter and USB cable supplied) |
| Battery Specification | Supplied: 2x rechargeable Li-Ion smartpacks and 1x 4x AA pack ≤6h runtime per Li-Ion smartpack; ≤4h runtime with AA battery pack. Recharge time ≤4h when using AC; recharge >4h when using USB; run times may vary depending on operating mode |
| Cold Start Time | < 2 mins from cold start |
| Operating Temp | -20 to 50 °C |
| Operating Humidity | 0 to 100% |
| Storage Temperature | -20 to 50 °C |
| Dimensions (L x W x H) | 10.2 x 26.9 x 9.4 cm |
| Weight | ≤1.5 kg |
| Enclosure & Protection | Aluminum housing; protection rating IP67 according to IEC 60529 |
